Romford 16.5mm Axle (1/8" diameter)

Romford 16.5mm Axle (1/8

£1.98/$2.48

MRAX/OO 1/8" diameter axle for 16.5mm track.Includes two brass fixing nuts. For spacing washers see WPY33

Owing to the current closure of Markits, following Mark's death, we are currently only supplying

these components commensurate with a purchase of Scale Link wheels. i.e. 6 wheels = 3 axles

When the future of Markits is known, we will review the situation.

Orders received without the appropriate quantity of Scale Link wheels will currently not be supplied.
find out more

21mm/17-spoke driving wheel x 1

21mm/17-spoke driving wheel x 1

£4.80/$6.00

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: JULY 2011

Diameter of drum is 21mm. 5 feet 3 inches in 00 182.7cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

20mm/17-spoke driving wheel x 1

20mm/17-spoke driving wheel x 1

£4.80/$6.00

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: JULY 2011

Diameter of drum is 20mm. 5 feet 0 inches in 00 174cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

24 x Crank pins for driving wheels

£27.00/$33.75


find out more

4 x Threaded crankpins & slotted retainers.

£6.50/$8.13

Standard 10BA thread for the driving wheel & 14BA threaded retainer. a de-luxe crankpin set.
find out more

40:1 Gearset 3/16" wheel bore/2.0mm worm

£10.20/$12.75

This set is designed for 'O'-gauge models.

Gearwheel 16.65mm - 3/16" bore : Worm 6.3mm - 2mm bore

Do you require a wheel, worm & mount? If so, see SLGS11.
find out more

Code 100 No 6 Curved Turnout - Left

Code 100 No 6 Curved Turnout - Left

£30.00/$37.50

NOTE: This turnout is ok for small parcel post - select SHINOHARA TURNOUTS & CROSSING at the checkout.

Standard postal rates do NOT apply - If you purchase track as well select FLEXI-TRACK PLUS.

Customers outside the UK can only receive track by International standard parcel

unless the track is cut down to 900mm lengths. SELECT FLEXI-TRACK in shipping

Radii 61cm/51cm 24"/20" ; Inside curve length 33.8cm / 13.3" : Frog 9.30 degrees

Use SHINOHARA SDG650 Point motor OR any SELF-LATCHING point-motor.

Only 7 remaining -05/03/2024

For manual operation see SDG651 in Shinohara accessories


find out more

Mashima 1015D Motor

£36.00/$45.00

L = 15mm. W = 10mm. D = 12mm. Fixing spacing holes 8.5mm

Overall length 35mm - 1.5mm shaft

NOW WITH 2 x M1.4 SCREWS

Please note that we are limiting ALL customers to 2 of any Mashima motor to make them available

to as many modellers as possible.
find out more

Mashima 1624D motor

£42.00/$52.50

L = 24mm. W = 13.6mm. H = 15.8mm Fixing spacing holes 8 or 10mm

Overall length = 44mm - shaft 2mm

NOW WITH 2 x M2 SCREWS

Please note that we are limiting ALL customers to 2 of any Mashima motor to make them available

to as many modellers as possible.
find out more

1:35 German Markings

1:35 German Markings

£10.50/$13.13

An etched brass, reusable stencil.
find out more

Sundries = Motors etc

Scalelink |  Sundries = Motors etc

Page:  1  2  3   >   >>   View All (28) Page:  1  2  3   >   >>   View All (28)

Scale Link 12v Coreless Motor

Scale Link 12v Coreless Motor

Ref: SL-CM2517S

Technical data:-

25mm long x 17mm round with single 1mm shaft, 4.8mm long.

Mounting hole spacing 10mm. M2 screws - see listing below (SM-MMS02)

Made in China.

Price: £30.00/$37.50 (Including VAT at 20%)

Scale Link 12v DC 5-pole Motor

Scale Link 12v DC 5-pole Motor

Ref: SL-CM2820D

Technical data:-

25mm long x 20mm x 15mm with a double 1.5mm shaft 8.5mm long.

Mounting hole spacing 12.5mm. M2 screws -see listing below (SM-MMS02)

Made in China.

Price: £18.00/$22.50 (Including VAT at 20%)

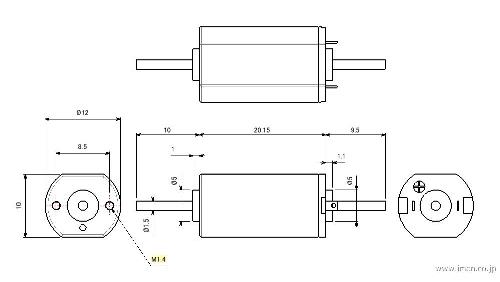

Scale Link 12v DC 5-pole motor 1220D

Scale Link 12v DC 5-pole motor 1220D

Ref: SL-IM1220

Technical data:-

20mm long x 12mm tall x 10mm wide with double 1.5mm shafts, 9mm long.

Mounting hole spacing 8.5mm.. Requires M1.4 mounting screws - see listing SM-MMS01

Made in Japan.

This is an ideal replacement for the Mashima SM-MHK1220D

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs

Price: £16.20/$20.25 (Including VAT at 20%)

Canon 12volt DC 3-pole motor with double shafts

Canon 12volt DC 3-pole motor with double shafts

Ref: Canon-CN16-0640

The motor measures 34mm x 16mm x 14.6mm and has a 1.5mm shaft.

Fixing is by 2 x M1.7 x 2.0mm bolts which are NOT included - SEE SM-MMS06.

Rated speed 6900 rpm on load. 40ma current load. Fixing centres 11mm

Overall length including the double shafts is 47.7mm.

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs

Price: £27.00/$33.75 (Including VAT at 20%)

Canon 12volt DC 5-pole motor

Canon 12volt DC 5-pole motor

Ref: CANON-CN22

The motor measures 32.8mm x 22mm x18mm and has 2.0mm shaft.

Overall length, including the double shafts is 64.70mm

Fixing is by 2 x M2 x 2.0mm bolts which are NOT included - SEE SM-MMS02.

Rated speed 11200 rpm off load. 40ma current load. Fixing centres 15mm

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs

Price: £30.00/$37.50 (Including VAT at 20%)

Hanazono 12 volt DC 5-pole motor

Hanazono 12 volt DC 5-pole motor

Ref: SM-H1024D

This is the Hanazono 1024, 5-pole, 12v DC open-frame motor supplied with 2 mounting screws M1.4 x 2mm

Body size is 24mm x 15mm x 10mm. Doubl-ended suits MM210 gearbox. Shaft is 1.5mm in diameter.

Fixings 10mm apart.

Price: £18.00/$22.50 (Including VAT at 20%)

Hanazono 12 volt DC 5-pole motor [LH21]

Hanazono 12 volt DC 5-pole motor [LH21]

Ref: SM-H881

Length over body 21mm. Height 13mm. Width 9.6mm.

Length over shafts 35mm. Mounting holes 8mm apart.

Shaft diameter is 1.5mm. Mounting screws M1.4 x 2mm (SM-MMS01)

Price: £64.80/$81.00 (Including VAT at 20%)

Hanazono 12 volt DC 5-pole motor [LH19]

Hanazono 12 volt DC 5-pole motor [LH19]

Ref: SM-H882

Length over body 19mm. Height 13mm. Width 9.6mm.

Length over shafts 35mm. Mounting holes 8mm apart.

Shaft diameter is 1.5mm. Mounting screws M1.4 x 2mm (SM-MMS01)

Price: £18.00/$22.50 (Including VAT at 20%)

Hanazono 12 volt DC 5-pole motor [LH17]

Hanazono 12 volt DC 5-pole motor [LH17]

Ref: SM-H883

Length over body 17mm. Height 13mm. Width 9.6mm

Length over shafts 35mm. Mounting holes 8mm apart.

Shaft diameter is 1.5mm. Mounting screws M1.4 x 2mm (SM-MMS01)

Price: £18.00/$22.50 (Including VAT at 20%)

Hanazono motor brushes & springs

Hanazono motor brushes & springs

Ref: SM-MB01

Pack contains 2 brushes & 2 springs

Price: £4.80/$6.00 (Including VAT at 20%)

Mashima 1015D Motor

Mashima 1015D Motor

Ref: SM-MHK1015

L = 15mm. W = 10mm. D = 12mm. Fixing spacing holes 8.5mm

Overall length 35mm - 1.5mm shaft

NOW WITH 2 x M1.4 SCREWS

Please note that we are limiting ALL customers to 2 of any Mashima motor to make them available

to as many modellers as possible.

Price: £36.00/$45.00 (Including VAT at 20%)

Mashima 1020D Motor

Mashima 1020D Motor

Ref: SM-MHK1020

L = 20mm. W = 10mm. D = 12mm. Fixing spacing holes 8.5mm

Overall length 40mm - 1.5mm shaft

NOW WITH 2 x M1.4 SCREWS

Please note that we are limiting ALL customers to 2 of any Mashima motor to make them available

to as many modellers as possible.

Price: £36.00/$45.00 (Including VAT at 20%)
