20mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

20mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

£11.10/$13.88

This pack contains 2 x 20mm Scale Link Driving Wheels & 1x Romford/Markits 00/H0 axle.
find out more

Wolseley Hornet saloon 1933

Wolseley Hornet saloon 1933

£12.96/$16.20

(Berline - Limousine)

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs
find out more

6 x Threaded crankpins & slotted retainers

£9.00/$11.25

Standard 10BA thread for the driving wheel & 14BA threaded retainer. a de-luxe crankpin set.

ONLY AVAILABLE WITH THE PURCHASE OF SCALE LINK DRIVING WHEELS
find out more

16mm /12-spoke driving wheel x 1

16mm /12-spoke driving wheel x 1

£4.20/$5.25

Produced by Scale Link/LSL with an ABS centre and nickled tyre.

Designed for use with Romford axles. Released: JULY 2010.

Diameter of drum is 16mm. 4 feet in 00 139.2cm in H0

THESE WHEELS ARE SOLD SINGLY
find out more

Romford 16.5mm Axle (1/8" diameter)

Romford 16.5mm Axle (1/8

£2.00/$2.50

MRAX/OO 1/8" diameter axle for 16.5mm track.Includes two brass fixing nuts. For spacing washers see WPY33

ONLY AVAILABLE WITH AN ORDER FOR OUR DRIVING WHEELS,
find out more

6 x Crank pins for driving wheels

6 x Crank pins for driving wheels

£7.20/$9.00

Set of 6 with retainers for 10BA tapped hole or for self-tapping into OUR wheels.

NOTE: Extreme care must be taken if soldering the retainer onto the crank-pin as heat can damage the wheel centre.

Inexperienced modellers should use Markits/Romford De-luxe crankpins with bushes and 14BA nuts.

ONLY AVAILABLE WITH THE PURCHASE OF SCALE LINK DRIVING WHEELS
find out more

Cast wheels & etched spokes - 8.10mm diameter

Cast wheels & etched spokes - 8.10mm diameter

£7.80/$9.75

Upgraded wheelsets for SLC060, 061, 062, 085.

(Roues a rayons - Rader)
find out more

12mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

12mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

£9.90/$12.38

This pack contains 2 x 12mm Scale Link Driving Wheels & 1x Romford/Markits 00/H0 axle.
find out more

16mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

16mm 00/H0 Driving wheels x 2 + 16.5mm axle x 1

£10.38/$12.98

This pack contains 2 x 16mm Scale Link Driving Wheels & 1x Romford/Markits 00/H0 axle.
find out more

Hanazono 12 volt motor bogie 35.mm wheelbase

Hanazono 12 volt motor bogie 35.mm wheelbase

£48.00/$60.00

Fitted 14mm disc wheels

BODY size:- Length=44.75mm x Width=14.35mm x Height=17.8mm (above rails)

These units must have weight applied to operate successfully.

For shipping you must select "Small boxed kits" or we cannot supply.

International shipping = e-mail for shipping costs
find out more

Tables

Scalelink | Product Information |  Tables

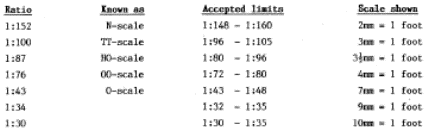

Accepted Limits

Accepted Limits

Ref: INFO1

This can be used to assist modellers to determine whether our products can be used on the layout or diorama under construction.

Click here for larger image

Scaling Tables

Scaling Tables

Ref: INFO2

Scaling tables for popular sizes.

Click here for larger image

Height Conversions

Height Conversions

Ref: INFO3

Useful height conversions for buildings, trees, etc.

Click here for larger image

Meshes - Reference guide

Meshes - Reference guide

Ref: INFO4

We produce meshes in the following formats:- Square, Diamond, Hexagonal, Octagonal & Rectagonal.

The bar width is defined as `fine', `medium' or `heavy' so the narrowest are `fine', the widest are `heavy'.

The size given is the measurement from centre bar to centre bar, NOT the hole size.

SQUARE MESHES-

FINE: 0.75mm = SLF060. 1mm = SLF077. 1.5mm = SLF078. 2mm = SLF079.

2.5mm = SLF080. 3mm = SLF081.

Micro Mesh: 0.20mm = MINI13. 0.35mm = MINI14. 0.50mm = MINI15.

MEDIUM: 0.75mm = SLF013. 1mm = SLF012*. 1.5mm = SLF085. 2mm = SLF086.

2.5mm = SLF050. 2.5mm = SLF051* 3mm = SLF087. 4mm = SLF088.

5mm = SLF052* 5mm = SLF053.

Note meshes marked * are diagonally set on the fret.

HEAVY: 1mm = SLF048. 1.5mm = SLF049. 2mm = SLF089. 3mm = SLF090

DIAMOND MESHES-

FINE: .5mm = SLF108. 1mm = SLF011. 2mm = SLF082. 2.5mm = SLF061. 3mm = SLF083. 4mm = SLF084.

Fret SLF014 has 50% of SLF078 + 50% of SLF061.

MICRO MESH: 0.20mm = MINI16 0.35mm = MINI17 0.50mm = MINI18

HEXAGONAL MESH - MICRO MESH: 0.25mm = MINI19

OCTAGONAL MESHES -

FINE: .5mm = SLF109. 1mm = SLF054.

MICRO MESH: 0.25mm = MINI20

RECTAGONAL MESH -

Contains 3mm x 5mm & 4mm x 6mm (each 50% of fret) = SLF027.

GEODETIC MESH - 5mm overlapped diamond (For footbridges etc) = SLF015

Mesh tables

Mesh tables

Ref: InfoM

Click here for larger image
